SURFconext

SURFconext is a federated identity provider, it acts as gateway for IDP's of eductional instidutions. OpenID Connect and SAML are the two protocols supported of which the JCR uses the first.

Management

The SURFconext Service Providers (SP) can be managed from the SURFconext Service Provider Dashboard. SP's are applications in need of federated identity. You need permissions to access the SP Dashboard by sending an accession request for our SURFconext team.

Environments

SURFconext has two envrionments you can access for test and production.

• Connect to the Test environment for testing your OpenID Connect or SAML SP connector with SURFconext.
• SURFconext production environment in 5 steps.

Requirements

For using the SURFconext test environment a view requirements must be met:

• Minimal user information requested by the SP, only essential information. These requests are called claims in OpenID Connect, for SAML these are attributes.
• Contractual requirements for your organization.

SURFconext in production requires the some extra:

• SSL Labs test Rating B or Higher.
• Organizational support for adding a new application / SP. Not any application may be connected to SURFconext.

Claims

The Joint Cyber Range uses the following OpenID Conncet claims with the motivation for using it.

• Common name attribute: Identify users of the platform

• Email address attribute: Communication within the platform can be realised using emails.

• Organization attribute: Organizational seperation in the platform. One organisation is one school.

• Affiliation attribute: Identify users of the platform

• Preferred language attribute: Different languages in the platform

Service Provider entity config

• Client id using a valid URL (recommended to use the (sub)domain+TLD / URL of your app without https:// prefix)
• Client Secret will be generated and only shown ones when the SP entity is published
• Redirect URL your app responds to, this is your full app URL with https:// prefix and suffix of added to the URL /auth/surfconext/confirm. When you want to allow more URL's to be accepted, just add them with correct prefix.
• Choose wether to receive the transient or the persisent version grants. See for more information In short: If you need to identify a returning user, choose persistent, otherwise choose transient.
• Organization's logo must be available over a public URL.
• Name & Description in Dutch & English
• Various type of contact information: administrative, technical and support. It's highly recommended to use functional addresses (i.e. tech@serviceprovider.org) instead of personal addresses.

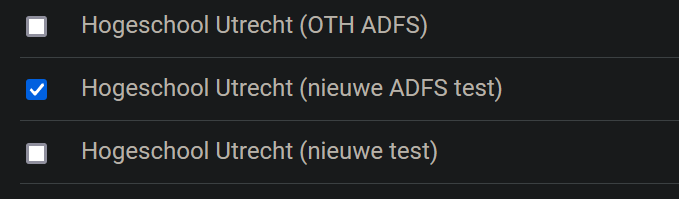

Allowed educational institutionsIdP Whitelist

When logging in to an application using SURFconext you can choose which organization to do with using the WAYF (Were Are You From) page. In the sp.dashboard under IdP whitelist, you can configure for every entity the institutions you allow to be shown in the WAYF page and thus login with.

Edit:

List:
